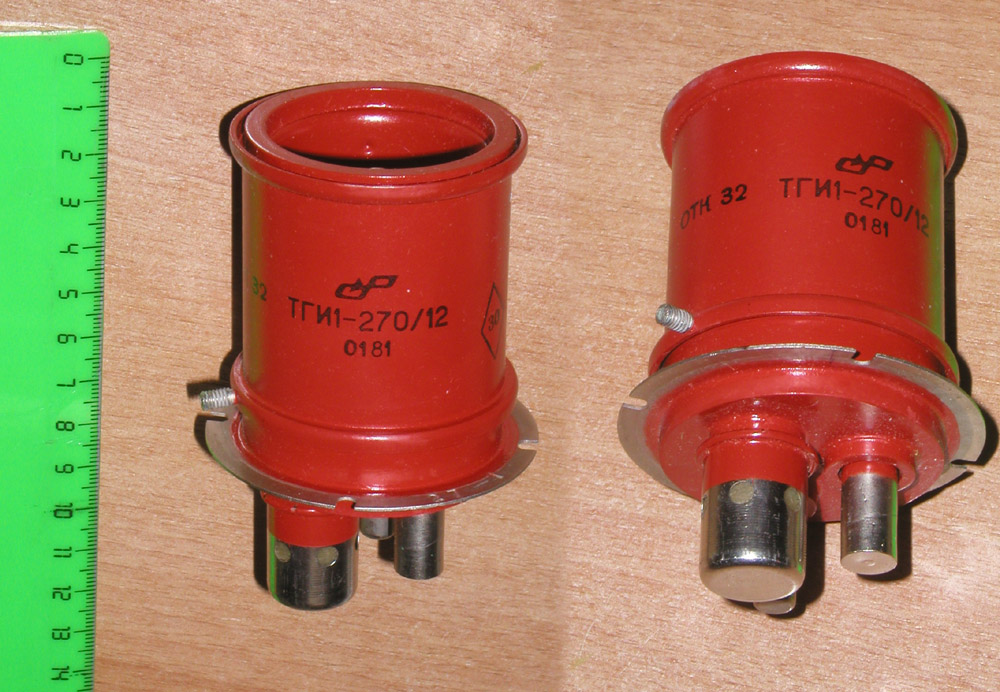

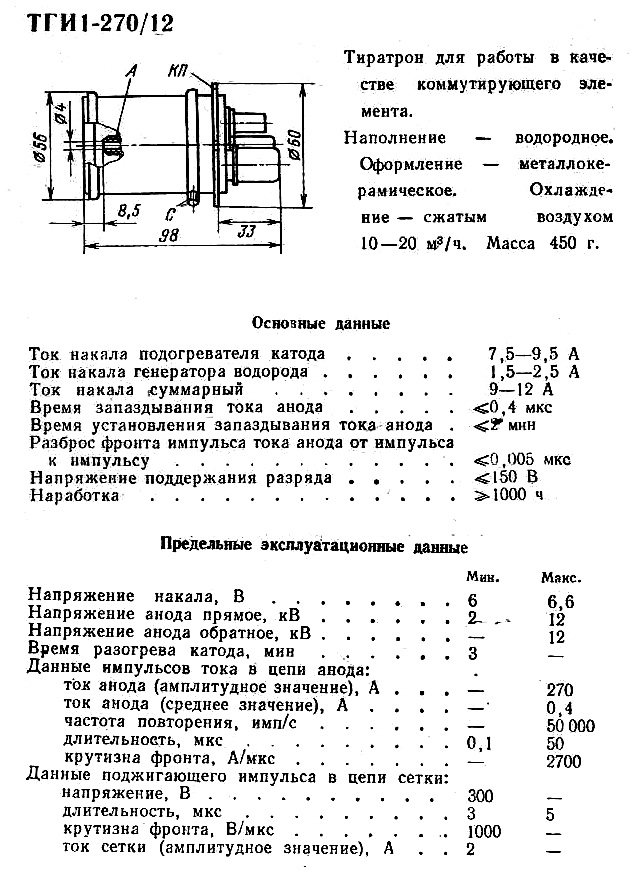

Tgi1-270/12
Thyratron with hydrogen filling.
Metal-ceramic envelope.
Weight: 450 grammes.
Cooling must be by compressed air 10-20 m3/h
Main parameters:
Heater voltage: 6 - 6.6 V
Heater current: 7.5 - 9.5 A
Hydrogen heater current: 1.5 - 2.5 A
Total heater current: 9 - 12 A
Heating time: 3 min
Time delay of Anode current: no more than 0.4 mks
Continues dischage voltage: no more than 150 V
Life: at least 1000 hours
Maximum orepating values:
Anode voltage (direct) 2 - 12 kV
Maximum back-direction anode voltage: 12 kV
Peak anode current: 270 A
Average anode current: 0.4 A
Maximum frequesncy: 50000 pulses/sec
Pulse duration: 0.1 - 50 mks
Pulse front: no more than 2700 A/mks
Grid switch pulse:
voltage: higher than 300 V
duration: 3 - 5 mks
front: no more than 1000 V/mks
peak current: 2 A
