Параметры и характеристики .

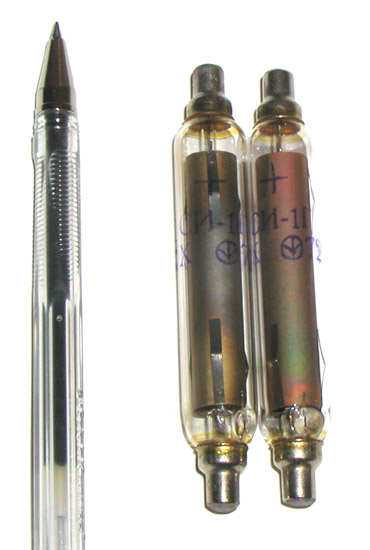

GM tube (GM Counter)
SI1G (cu1r)
Threshold Voltage: 280...320 V
Working Voltage: 360...440 V
Plateau length: at least 80 V
Plateau slope: not more than 0.125%
Background: Not more than 25 pulse/sec
Load resistance: 5...10 MOhm
Maximum allowable capacity of input circuites: 10 pF
Transit capacity of input circuites: 7...15 pF
Range of working temperature: -40: +50 OC
